Balboa BP7 with TP600 Bundle, 5.5KW Heater
The BP7 spa pack, with the M7 5.5KW heater and 32 different preloaded setup options, is designed for a hot tub with 1 to 4 pumps, including Microsilk systems. The power output to the pumps and accessories is convertible and can be set to either 120V or 240V. This retrofit bundle includes the oval-shaped 6-button TP600 topside control, which has a large, easy-to-read backlit LCD screen and simple-to-follow menus.
Ā
BP7 Bundle details:
- 220 - 240 volts 60HZ only, cannot run on 120 volts,
- 5.5KW heater
- Can operate:
- Pump 1 - 1 or 2 speedsĀ (Default setting 2 speed, can be changed)
- Pump 2 - 1 or 2 speedsĀ
- Pump 3 - 1 speedĀ
- Dedicated circulation pump, (min 23 GPM and min 1.5" plumbing required)
- Ozonator - M7 Patented Sensor heater technology
- Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
- Balboa Bluetooth Audio compatible, module 59089 (Sold separately)
- Spa light control 1 Amp max
Ā

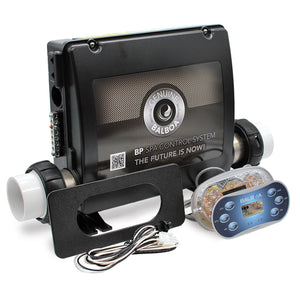

Whats included:
- Balboa Spa pack BP7 P/N G5361 (5.5KW Heater)
- TP600 topside control Face size W=7.1" x H=3.5"
- Adaptor plate (Bezel) 9" x 4"
- Cord for light, 10' long
- Balboa BP7 and TP600 programming user manual (Digital Download)
Ā
TP600 Buttons for 3 pump set up:
The buttons on the TP600 are labeled left: Jets 1, Aux, Invert, Right:Warm, Light, Cool.
In spas with 3 pumps for the jets the TP600 button functionality for 3 pumps will be:Ā Jets 1, Aux for Jets 2 and Invert for Jets 3.
Ā
Why Balboa?
The industry leader for reliability, durability and serviceability, the new BP7 system has a replaceable single circuit board configuration, replaceable heater featuring the quick connect heater plug system and both sensors are individually replaceable.
Ā
Important.
This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
